Automatic Folder Gluer Machine

Short Description:

Automatic Folder Gluer mainly used for color box packaging enterprises cartons, boxes bonding process. This is because the vast majority of domestic enterprises in the complex special packaging and corrugated carton boxes paste synthetic processes are used purely manual, which led to paste box molding processes across in enterprise, particularly in the corrugated box manufacturing enterprises employing the most, covering most, the minimum efficiency


Product Detail

Product Tags

Introduction of the machine

Automatic Folder Gluer mainly used for color box packaging enterprises cartons, boxes bonding process. This is because the vast majority of domestic enterprises in the complex special packaging and corrugated carton boxes paste synthetic processes are used purely manual, which led to paste box molding processes across in enterprise, particularly in the corrugated box manufacturing enterprises employing the most, covering most, the minimum efficiency. There is also easy quality problems processes for their production and management lot of
troubles. This is my plant machinery for labor-intensive countries and regions packaging enterprises’ problems. Thus the R & D, the use of this machine will enable enterprises to reduce the large number of skilled workers dependent on box paste, small footprint, and greatly enhance work efficiency and product quality.

Function and characteristic

1、Carton forming speed
2、Suction feed accurate
3、The second indentation, so that origami is more accurate
4、Size, good population control and reduce waste
5、The second correction, the total elimination of scissors mouth
6、Count accurate
7、Beating the department to make paper box forming good
8、A neat pile and accurate

Main technique parameter

Model 2300 2600 2800
Size A(mm) 80-880 80-880 80-880
Size B(mm) 700-2320 700-2620 700-2820
Size C(mm) 160-840 160-840 160-840
Size D(mm) 260-1050 260-1150 260-1250
Install Area(mm) 3500×14000 4000×15000 4200×16000
Motor KW 10kw 12kw 12kw

Introduction of each parts

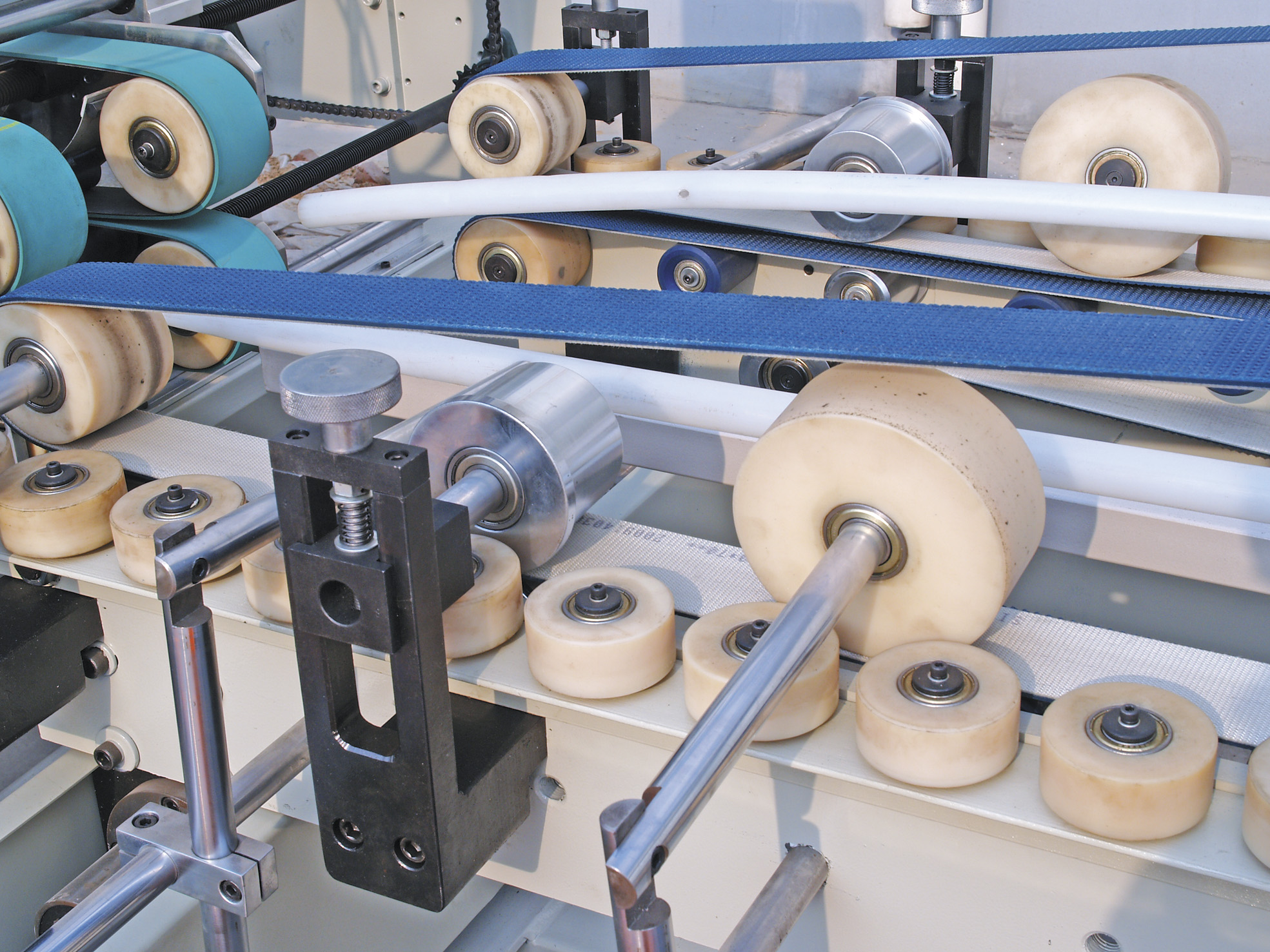

Department of Secondary indentation

1、The second amended the cardboard indentation line, so that more accurate location of origami, so that the paper does not break crease beautiful.

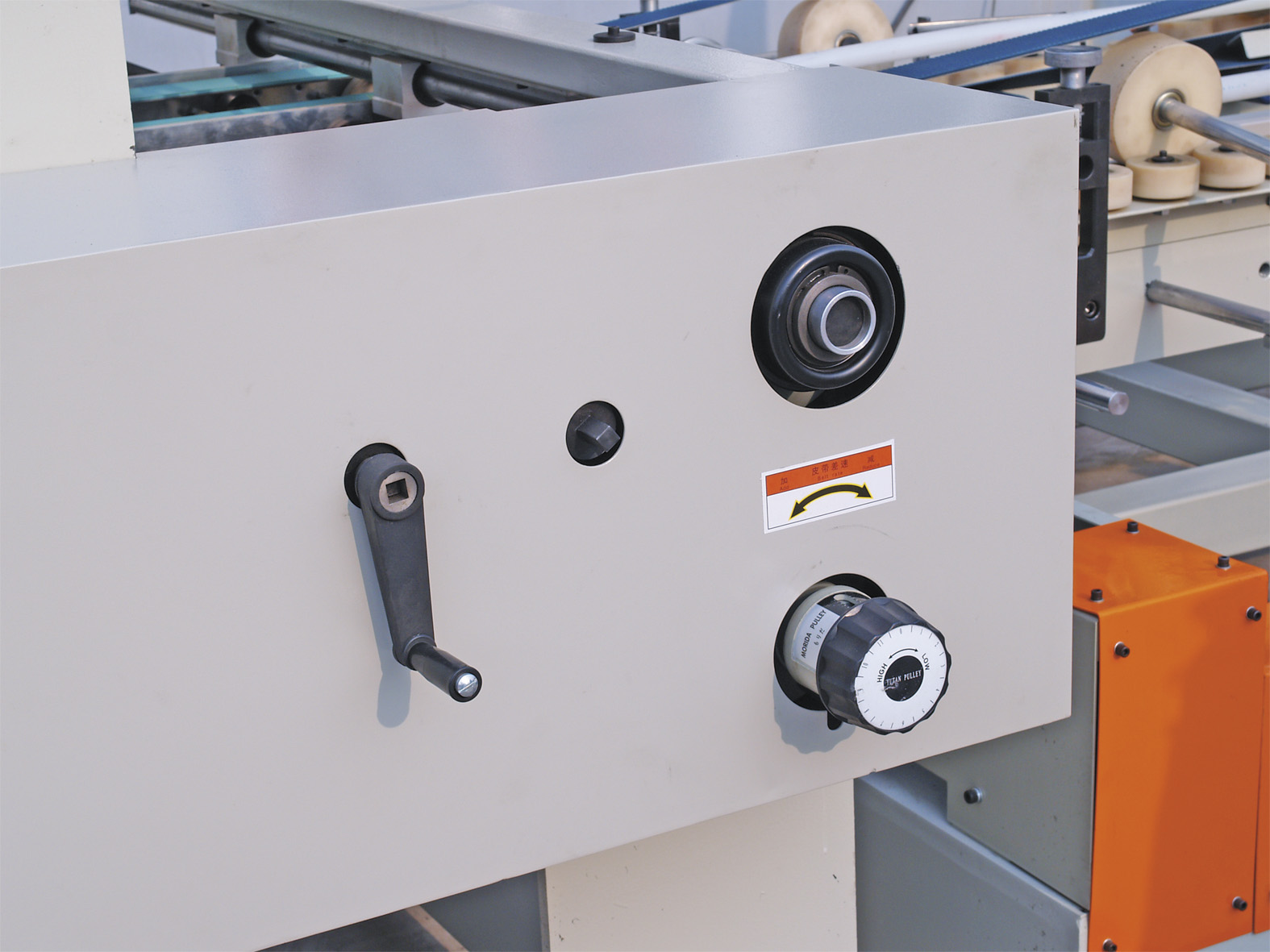

Department of Secondary indentation

2、Finished boxes automatic counting, plastic, stacked neatly, quasi-yards out, stacking velocity 130m/min

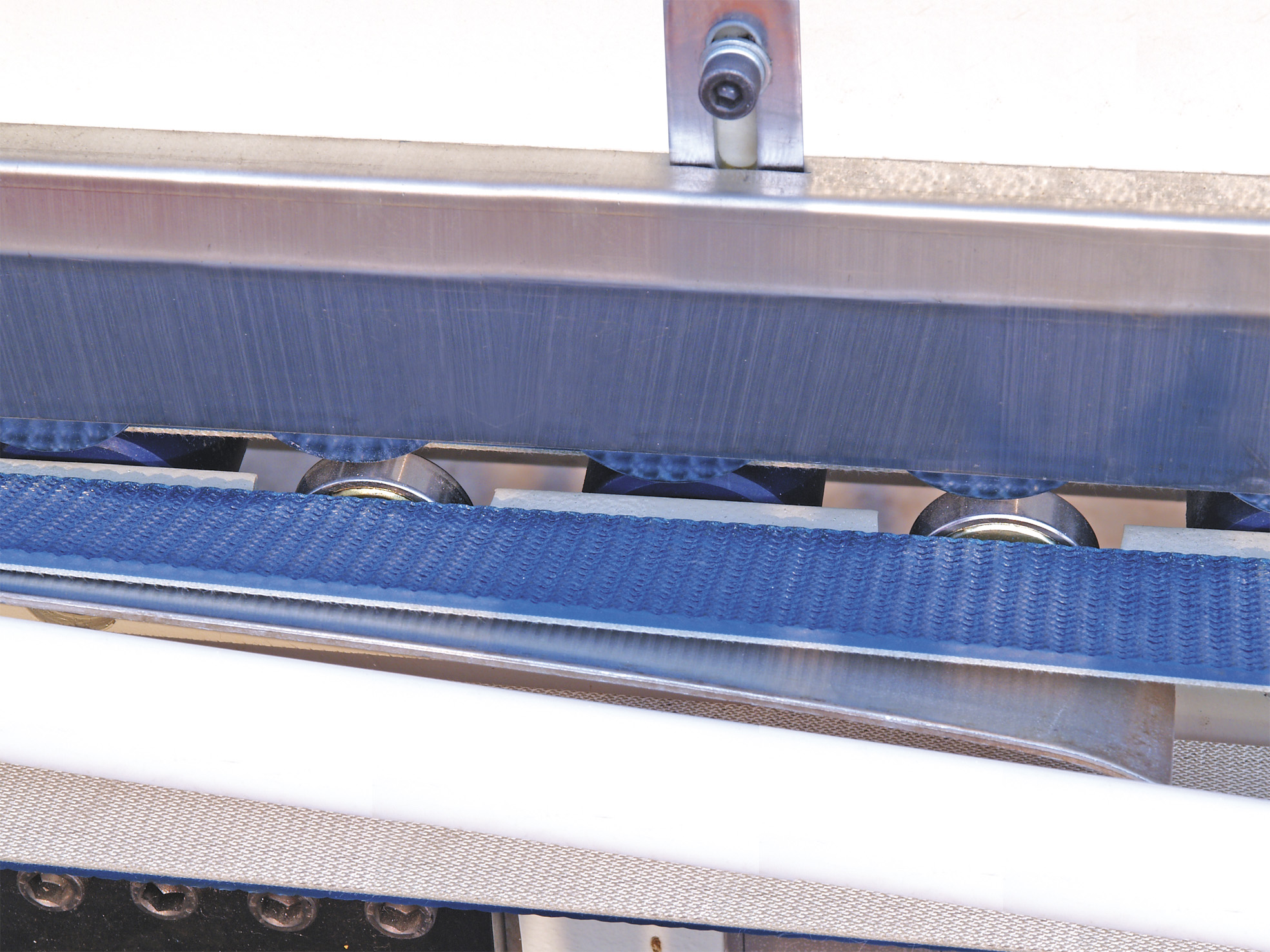

Department of Secondary indentation

3、The complete elimination of scissors mouth, folding more beautiful.

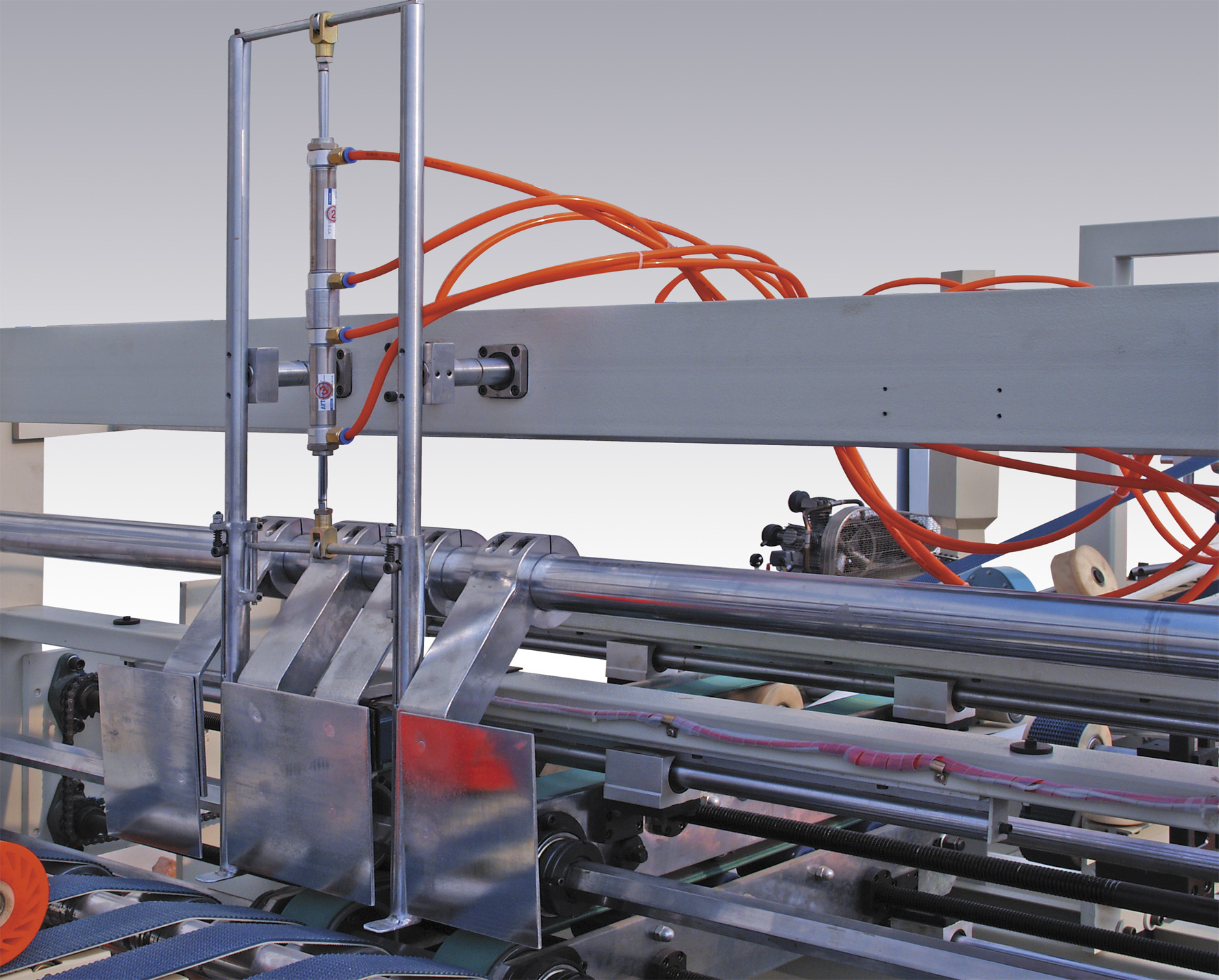

Department of Secondary indentation

4、The complete elimination of the size of the mouth of a higher passing rate.

Main technique parameter

1. 2.2KW IVORY Transducer         Made in Taiwan

2. 1.5KW IVORY Transducer         Made in Taiwan

3. 5.7Inch FUJI Touch Screen         Made in Japan

4. FUJI PLC-30                     Made in Japan

5. High Touch Sensitivity Air Circuit-Breaker Made in Taiwan

6. Schneider Contactor               Made in France

7. FUJI Button                      Made in Japan

8. Omron Photo Electricity Switch      Made in Japan
